Name: DWDM OSN 9800 P32 Optical Line Boards ON32 TMP1ON32
Brand: Huawei
Price: 1 USD

Ask Lasest Price
Model Number :	OSN 9800 P32
Brand Name :	Huawei
Supply Ability :	200 Piece/Pieces per Week
Price :	Negotiable
Certification :	CE FCC RoHS
Delivery Time :	7-15 days
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Add to Cart

Product Introduction

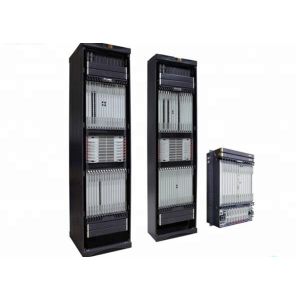

The huawei Optix OSN 9800 P32

Product Specifications

Subrack dimensions (mm)	1390 (H) x 496 (W) x 315 (D) (without cabinet)
Suitable cabinet	ETSI 300 cabinets, such as A63B
Max. number of slots for service boards	32
Max. number of wavelengths	Fixed grid: 96 wavelengths @50 GHz grid Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Wavelength range	DWDM system: 1529.16 nm to 1567.13 nm (extend C-band, ITU-T G.694.1)
Synchronization	* Synchronous Ethernet clock * IEEE 1588v2 * ITU-T G.8275.1
Power Supply	* Nominal working voltage:-48V DC/-60V DC * Working voltage range: * -48 V DC: -40 V to -57.6 V * -60 V DC: -48 V to -72 V
