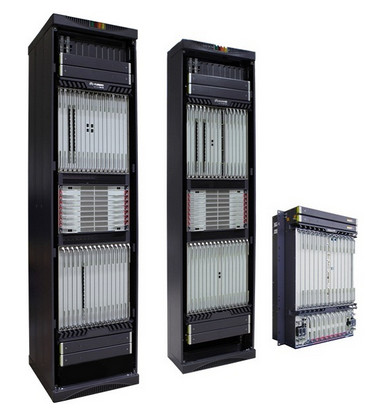

OptiX OSN 9800 TNV2G210 10 x 10 Gbit/s General Service Processing Board -- OSN9800

Functions and Features

The G210/G220 board supports electrical cross-connections, OTN interfaces, and ESC communication.

Table 1 describes the functions and features of the G210/G220 board when ports are used as tributary.

Table 2 describes the functions and features of the G210/G220 board when ports are used as line ports (line mode) .

Table 3 describes the functions and features of the G210/G220 board when ports are used as line ports (relay mode).

Table 1 Functions and features of the G210/G220 board (when ports are used as tributary ports)

Function and Feature	Description
Basic function	Supports the following service conversions: 10GE LAN/10GE WAN/STM-64/OC-192/OTU2/FC800/FICON8G<->ODU2 10GE LAN/OTU2e/FC1200<->ODU2e FC800/FICON8G/10GE LAN<->ODUflex
Client-side service type	STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FICON8G: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s
Cross-connect capabilities	The G210 board supports a maximum of 10 ODU2/ODU2e/ODUflex signals, and the G220 board supports a maximum of 20 ODU2/ODU2e/ODUflex signals. Both the G210 and G220 boards use backplane buses and cross-connect boards to implement service grooming.
OTN function	Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43. ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. ODUflex layer: supports PM overhead processing. OTU2 layer: supports SM overhead processing.
ESC function	Supported when the client-side service type is OTU2 or OTU2e.
PRBS test function	Supported NOTE: The PRBS function on the client side is supported only when the client-side service type is STM-64/OC-192, OTU2 or OTU2e.
LPT function	Supported only when the client-side service type is 10GE LAN.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU2 or OTU2e.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors B1 bytes to help locate faults. Monitors OTN alarms and performance events. Monitors parameters such as the bias current, temperature, and optical power of the laser. Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
Test frame	Supports the test frame function when the client-side service type is 10GE LAN.
Electrical-layer ASON	Supported
Latency measurement	The board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU2/OTU2e.
IEEE 1588v2	The G210/G220 board supports the TC, TC+OC, BC, and OC modes when the client-side service type is 10GE LAN and the Port Mapping is MAC Transparent Mapping (10.7 G). NOTE: The G220 board: Only ports 1-15 support IEEE 1588v2.
Physical clock	10GE LAN, Bit Transparent Mapping (11.1 G)		10GE LAN, MAC Transparent Mapping (10.7 G)
Physical clock	Supports synchronous Ethernet transparent transmission		Supports synchronous Ethernet processing
Protection scheme	Supports ODUk SNCP. Supports client 1+1 protection. Supports tributary SNCP protection. NOTE: The board supports tributary SNCP protection only when the client-side service type is OTN, SDH or SONET.
Ethernet service mapping mode	Supports Bit Transparent Mapping (11.1G) and MAC transparent mapping (10.7G) when the client-side service type is 10GE LAN.
Port MTU	The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes. NOTE: when Port Mapping is set to Bit Transparent Mapping(11.1G), Maximum Packet Length is unavailable on the U2000.
Loopback	Client side	Inloop	Supported
		Outloop	Supported
		ODUk Inloop	Supported
		ODUk Outloop	Supported
	NOTE: The board supports ODUk inloop and ODUk outloop only when non-OTN services are received and the port working mode is non-convergence. If the port working mode is set to ODUflex non-convergence mode (Any->ODUflex), the board supports ODUk inloop and ODUk outloop only when bidirectional cross-connections are configured.
Protocols or standards compliance	Protocols or standards for transparent transmission (non-performance monitoring)	ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic
Protocols or standards compliance	Protocols or standards for service processing (performance monitoring)	ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1

Table 2 Functions and features of the G210/G220 board (when ports are used as line ports (line mode))

Function and Feature	Description
Basic functions	Each port on the G210 or G220 board supports the following service conversions: 8 x ODU0/4 x ODU1/8 x ODUflex/1 x ODU2<->1 x OTU2 1 x ODU2e<->1 x OTU2e Each port on the board supports a mix of ODU0, ODU1, and ODUflex signals.
Cross-connect capabilities	G210: supports a maximum of 80 ODU0 signals, 40 ODU1 signals, 80 ODUflex signals, or 10 ODU2/ODU2e signals and cooperates with cross-connect boards to implement service grooming. G220: supports a maximum of 160 ODU0 signals, 80 ODU1 signals, 160 ODUflex signals, or 20 ODU2/ODU2e signals and cooperates with cross-connect boards to implement service grooming.
OTN functions	Supports OTU2/OTU2e on the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU2 layer: supports SM overhead processing. ODUk (k=0, 1, 2, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for: 40 wavelengths tunable in the C band with 100 GHz channel spacing 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function	Supported
PRBS test function	Supports the PRBS function on the WDM side.
LPT function	Not supported
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side. Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side. NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Regeneration board	The WDM-side signals from one G210/G220 board can be regenerated by another ND2/NQ2/N210/N216 board.
ALS function	Not supported
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Not supported
Optical-layer ASON	Supported NOTE: Optical-layer ASON is not supported when a gray light optical module is used.
Electrical-layer ASON	Supported
Protection scheme	Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board). NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Loopback	WDM Side Loopback	ODU1 Channel Loopback	ODU0 Channel Loopback	ODUflex Channel Loopback
Loopback	Supported	Supported	Supported	Supported
Protocols or standards compliance	Protocols or standards for transparent transmission (non-performance monitoring)	IEEE 802.3u IEEE 802.3z IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM)
Protocols or standards compliance	Protocols or standards for service processing (performance monitoring)	ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1

Table 3 Functions and features of the G210/G220 board (when ports are used as line ports (relay mode))

Function and Feature	Description
Basic function	Electrically regenerates optical signals at an electrical REG station.
Supported service rate	OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s
OTN function	Supports OTU2/OTU2e interface the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU2 layer: supports SM overhead processing. ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for: 40 wavelengths tunable in the C band with 100 GHz channel spacing 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function	Supported
PRBS function	Not supported
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side. Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side. NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
ALS function	Not supported
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Not supported
Electrical-layer ASON	Not supported
Optical-layer ASON	Supported NOTE: Optical-layer ASON is not supported when a gray light optical module is used.
Protection scheme	Not supported
Loopback	Not supported

Mechanical Specifications

Dimensions of the front panel (H x W x D): 477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
Weight
G210: 2.62 kg (5.78 lb.)
G220: 3.65 kg (8.05 lb.)

Power Consumption

Board		Typical Power Consumption (W)	Maximum Power Consumption^a (W)
G210	All ports are used as tributary ports.	78	99
G210	All ports are used as line ports.	90	99
G220	All ports are used as tributary ports.	112	148
G220	All ports are used as line ports.	136	148
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
