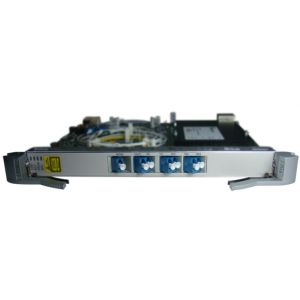

OptiX OSN 9800 TN13FIU02 fiber interface unit-- OSN9800 UPS

Ask Lasest Price
Model Number :	TN13FIU02
Supply Ability :	200 Piece/Pieces per Week
Price :	Negotiable
Brand Name :	Huawei
Certification :	CE FCC RoHS
Delivery Time :	7-15 days
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

OptiX OSN 9800 TN13FIU02 fiber interface unit-- OSN9800 UPS

Functions and Features

The FIU board multiplexes and demultiplexes C-band wavelengths, and supports in-service monitoring of optical power performance.

Table 1 describes the functions and features of the FIU board.

Table 1 Functions and features of the FIU board

Function and Feature	Description
Basic function	Multiplexes the main channel signal and the OSC signal onto a single communications channel, and vice versa.
In-service optical performance monitoring	Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic.
Optical-layer ASON	Supported

FIU Specifications

Specifications include optical specifications, mechanical specifications, and power consumption.

Optical Specifications

Table 1 Optical specifications of the FIU board

Interface	Parameter	Unit	Value
-	Operating wavelength range	nm	1529-1561
-	Operating wavelength range of the OSC signal	nm	TN12FIU/TN13FIU01/TN13FIU02/TN15FIU:1500-1520 TN13FIU03/TN14FIU/TN16FIU:1480-1520
-	Optical return loss	dB	> 40
IN-TM RM-OUT	Insertion loss	dB	≤ 1.5
IN-TC RC-OUT	Insertion loss	dB	≤ 1
IN-TM	Isolation	dB	TN12FIU/TN13FIU01/TN13FIU02/TN14FIU/TN15FIU: >40 TN13FIU03/TN16FIU: ≥55
IN-TC	Isolation	dB	TN12FIU/TN13FIU01/TN13FIU02/TN14FIU/TN15FIU: >12 TN13FIU03/TN16FIU:≥40
-	Polarization dependent loss	dB	< 0.2

Mechanical Specifications

TN12FIU/TN13FIU/TN14FIU/TN15FIU:

Dimensions of the front panel (H x W x D): 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight: 1.0 kg (2.2 lb.)

TN16FIU:

Dimensions of the front panel (H x W x D): 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight: 0.9 kg (2.0 lb.)

Power Consumption

Board	Typical Power Consumption (W)	Maximum Power Consumption^a (W)
TN12FIU/TN14FIU	4.2	4.6
TN13FIU	0.2	0.3
TN15FIU	6.0	6.6
TN16FIU	6.0	6.5
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
